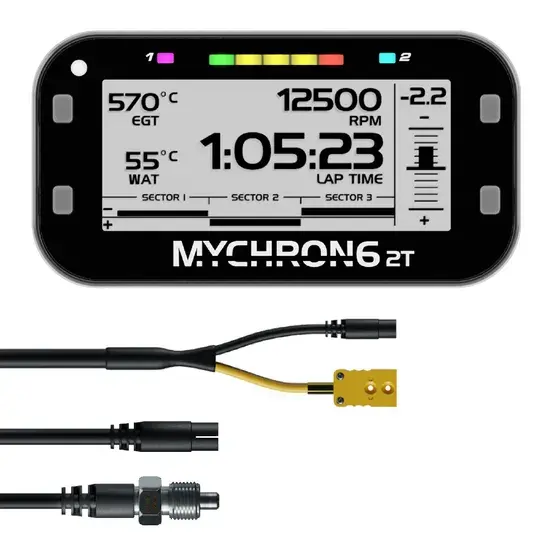

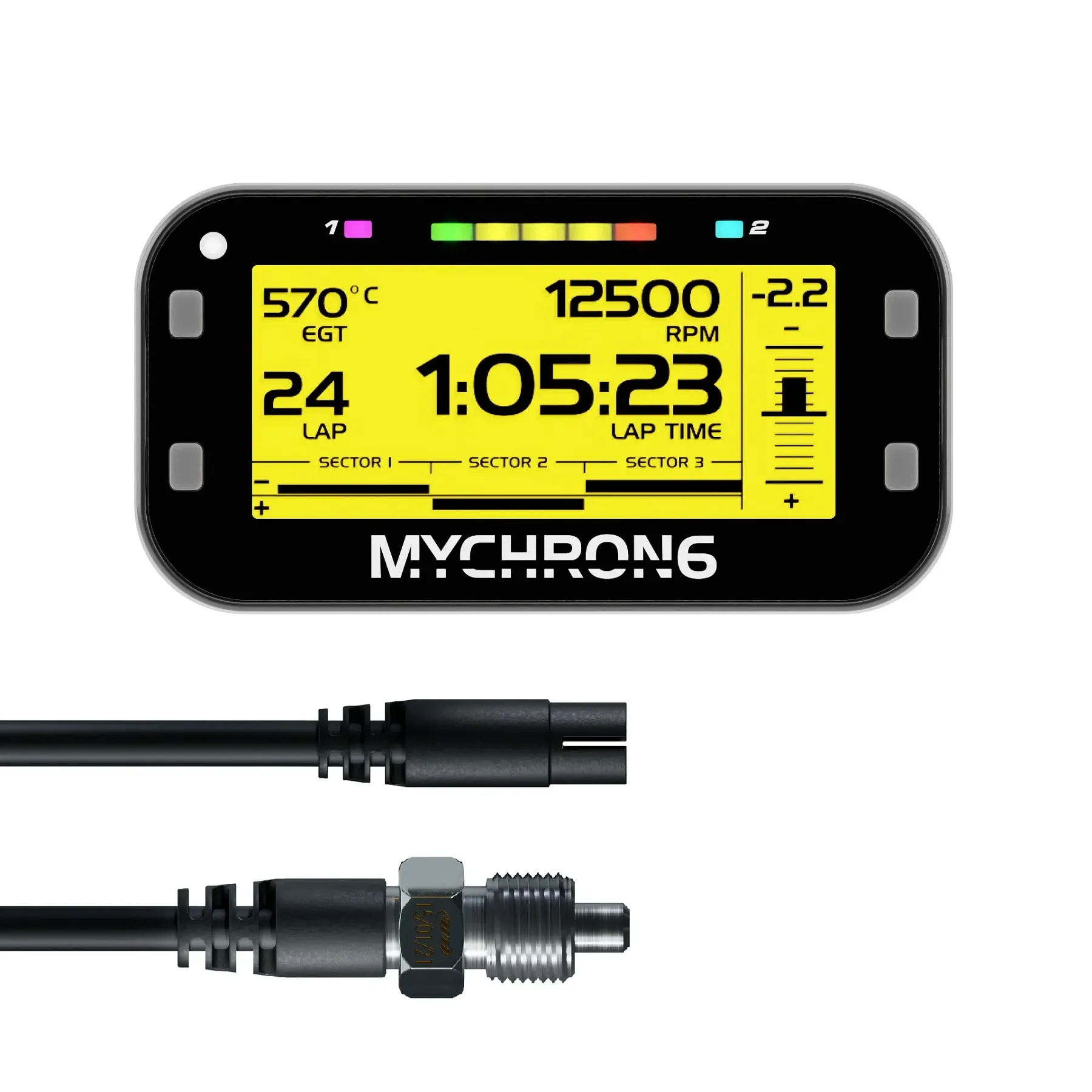

The AIM Motorsport MyChron 6 2T Dash Logger provides accurate lap timing and advanced data logging features to optimise your karting performance. Its built-in GPS technology ensures precise lap timing, while the integration with Race Studio 3 software offers seamless data management for in-depth performance analysis.
Explore the key features and benefits of the MyChron6 Dash Logger to maximise your kart’s potential:
- High-Precision GPS Technology: MyChron6 features an internal, high precision, 25 Hz four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) receiver and an internal database including information about the track: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.
- High-Precision GPS Technology: MyChron6 features an internal, high precision, 25 Hz four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) receiver and an internal database including information about the track: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.
- Utilises 25Hz GPS sampling to deliver precise lap timing, split times, and track position mapping, enabling you to track every detail of your performance.
- Delta Bar Animation: Offers real-time graphical feedback by comparing your current lap times to your best, so you can instantly adjust your driving technique to improve the sector times for the remainder of the lap.
- In-Built Track Database: Automatically recognises your track and timing strip locations, allowing you to access lap times, split times, and predictive lap times from the very first lap without requiring any setup, ensuring seamless performance monitoring right away.

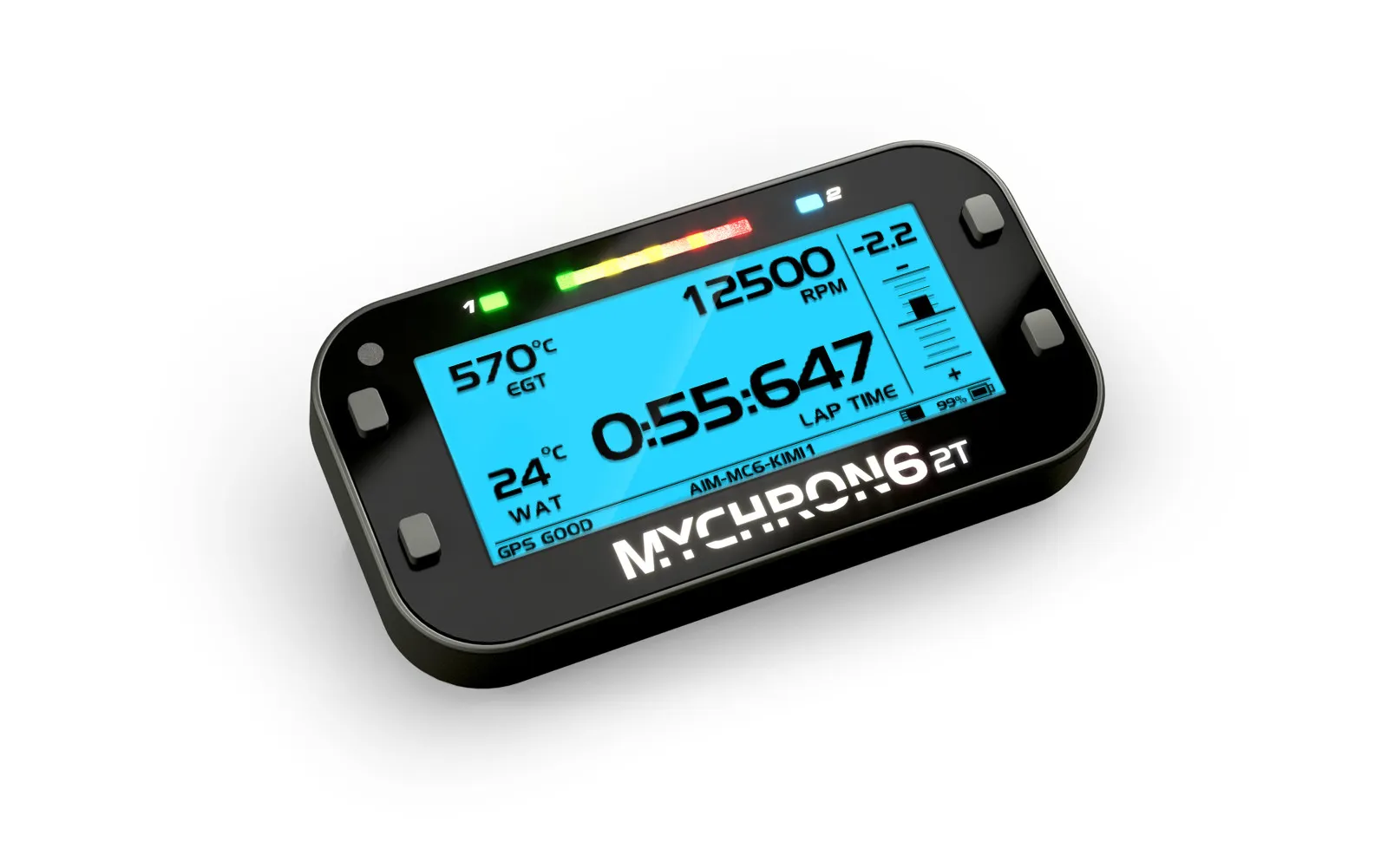

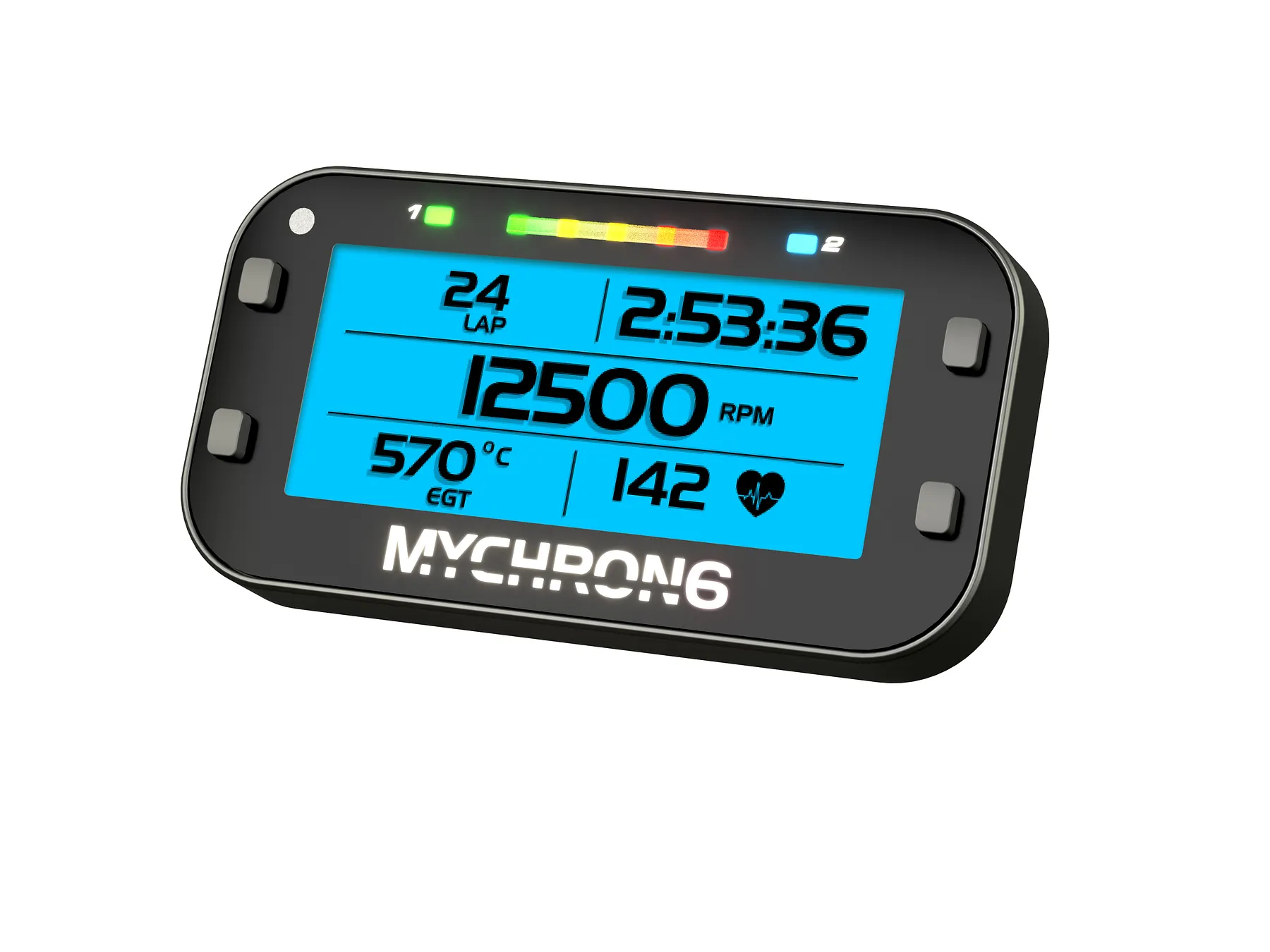

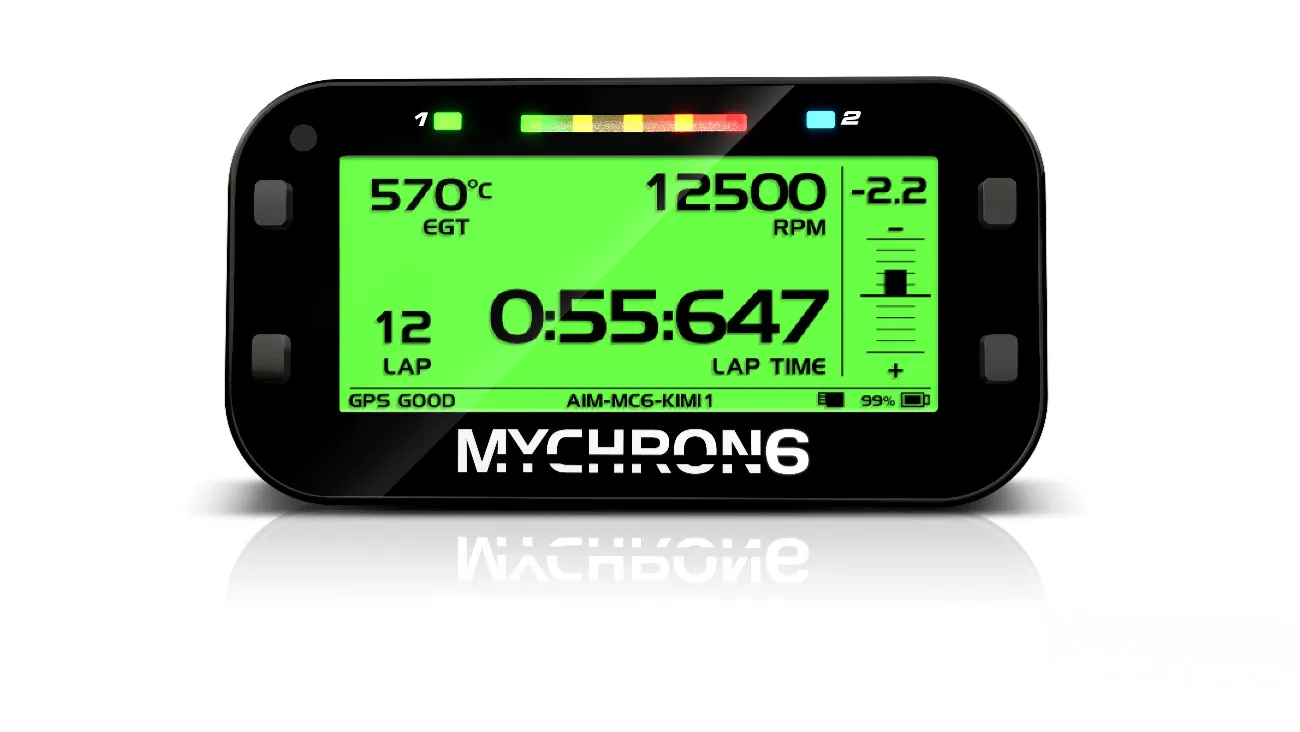

- Configurable Display Options: Features multiple user configurable page layouts and customisable RGB backlight colours with an ambient light sensor for optimal visibility in all lighting conditions.
- Integrated Data Recall Function: Allows you to quickly review critical information on screen, post-session, including lap times with best lap indications, max RPM and max temperature values, helping you identify areas for improvement.
- 5-LED Shift Light Array: Customise gear shift light sequences with RGB patterns, assigning specific colours for each shift, improving precision during high-speed racing.
- RGB Alarm LEDs: Set personalised alerts with adjustable colours and flashing patterns to monitor engine parameters or other critical metrics.
- Expandable Sensor Compatibility: Supports additional modules like the MyChron Expansion for monitoring braking, throttle, and chassis dynamics, providing deeper insights into kart performance.
- Existing Sensor Compatibility: MyChron6 fully supports all MyChron5 sensors, allowing for a seamless upgrade to the latest lap timer and data logger without needing additional investments in new sensors.
- Calculated Gear Number: Automatically calculates and displays your current gear providing precise gear information to enhance control and optimise shifting in shifter karts.
- Rechargeable Lithium Battery: Offers up to 20 hours of use on a single charge, with an optional external power lead for continuous operation during extended events.
- Wireless Connectivity Options: Features secure WiFi and Bluetooth connectivity for quick data transfer, firmware updates, and device pairing, including all brands of heart rate monitors.

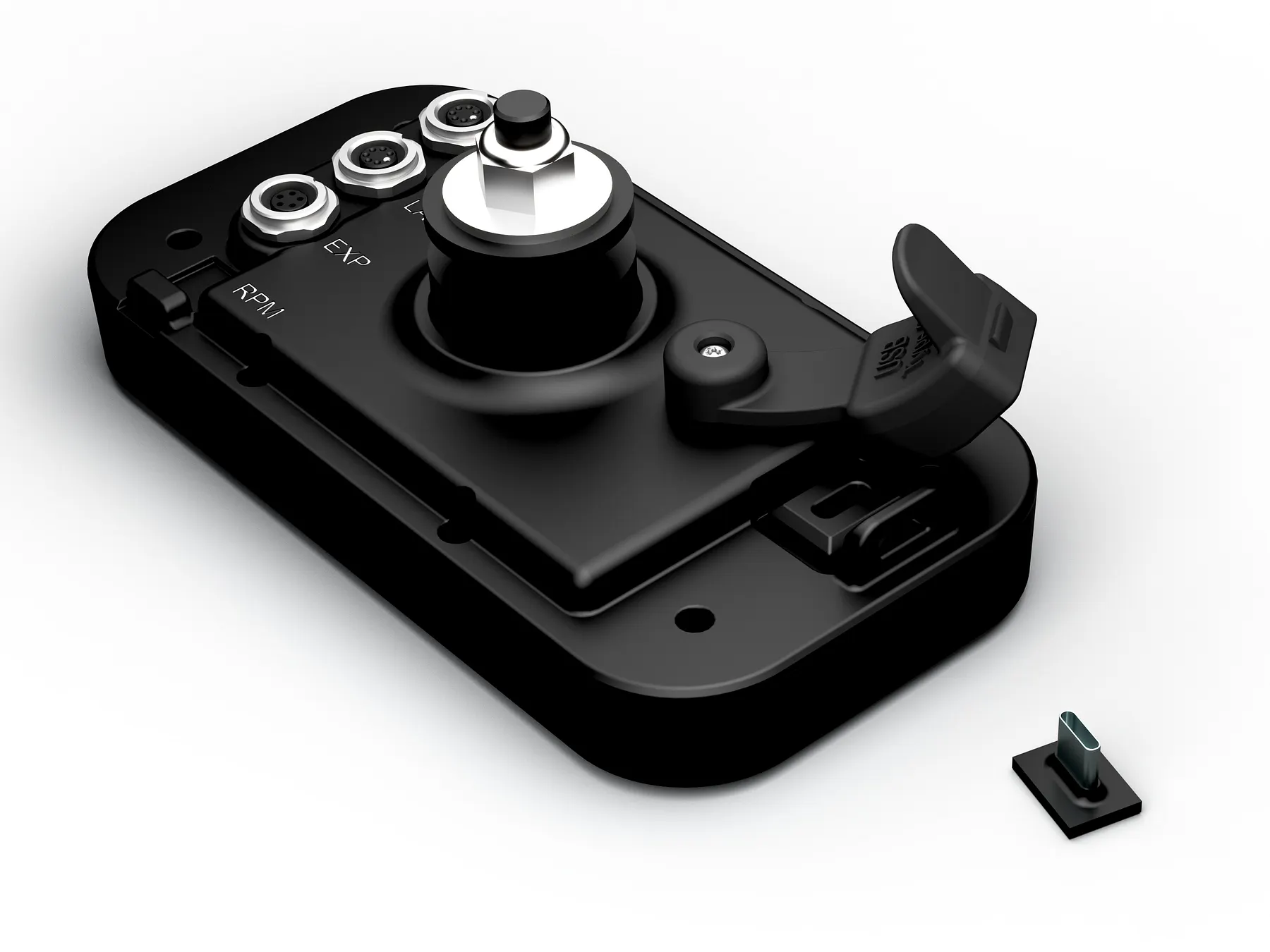

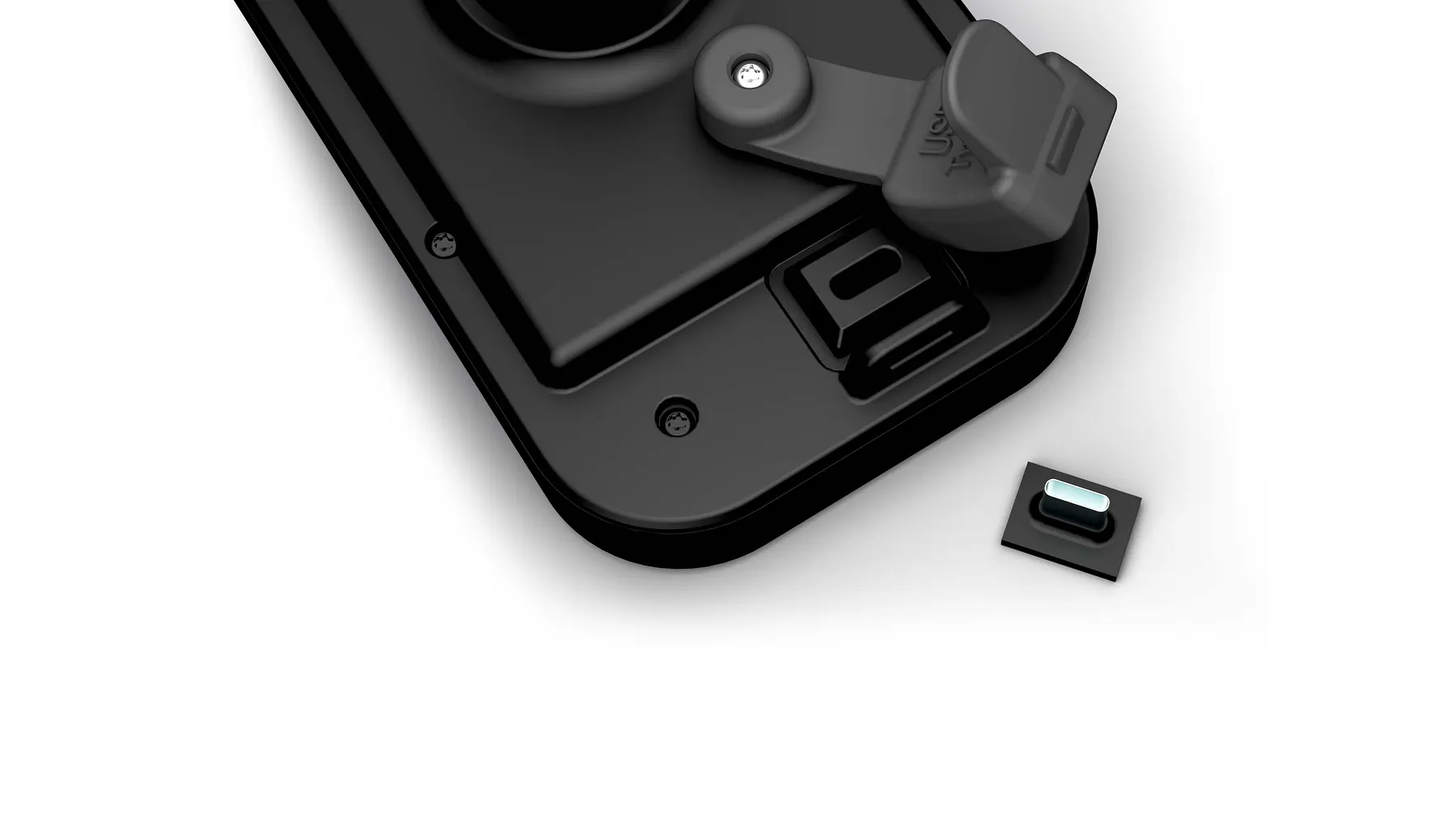

- USB-C Connector: Enables faster wired data transfer to laptops or tablets while also supporting efficient battery charging, streamlining your workflow and ensuring the device is always ready to perform.
- 4GB Internal Memory: Stores over 3,000 hours of data, ensuring you have ample space for detailed logging across multiple sessions.

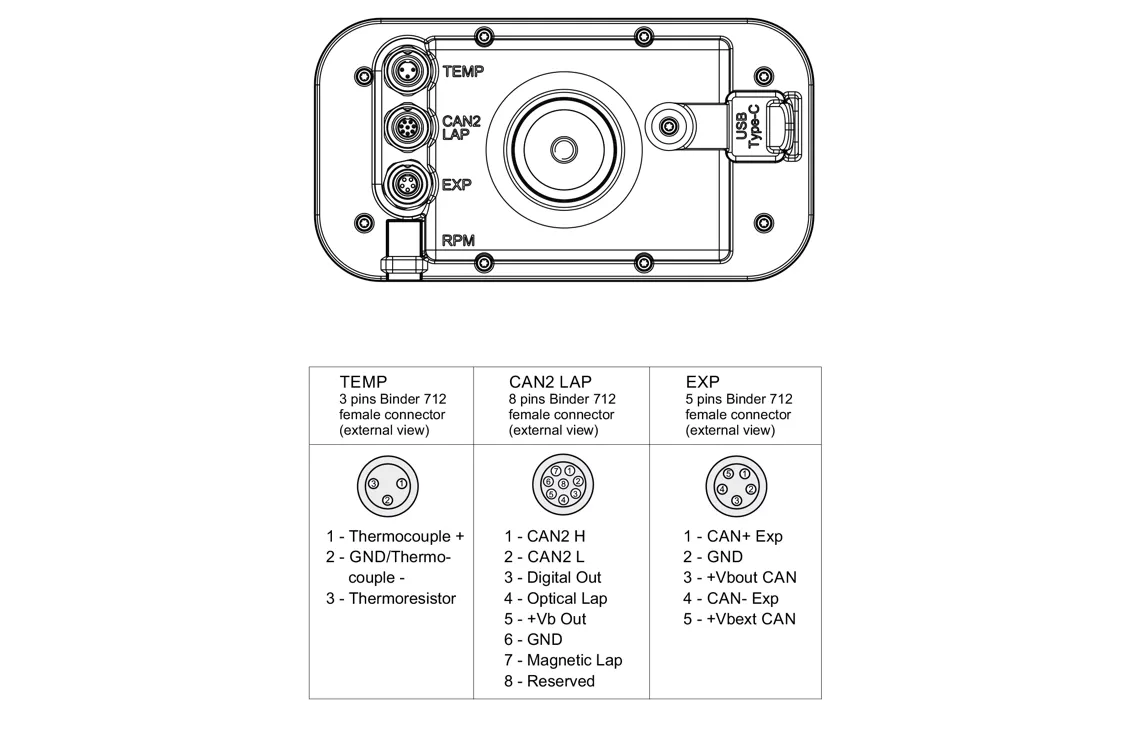

- Advanced Engine Monitoring: Includes 2x temperature sensor inputs for monitoring water, cylinder head, or exhaust gas temperatures, with additional sensors available for full kart diagnostics.
- Integrated 6-Axis Inertial Platform: Provides comprehensive insights into your kart’s dynamics, helping you fine-tune the setup for better handling and reduced lap times.
- Seamless Race Studio 3 Integration: Simplifies data analysis with an easy-to-use interface, designed for on-the-go performance evaluation.
- Enhanced Durability: IP67-rated for water and dust resistance, ensuring reliable operation in all weather conditions.
- Second CAN Port: Future-proof design enables seamless system expansion with additional devices and modules.
- Optional SmartyCam 3 Integration: Capture full HD video footage overlaid with real-time data for a complete analysis of your driving performance.
